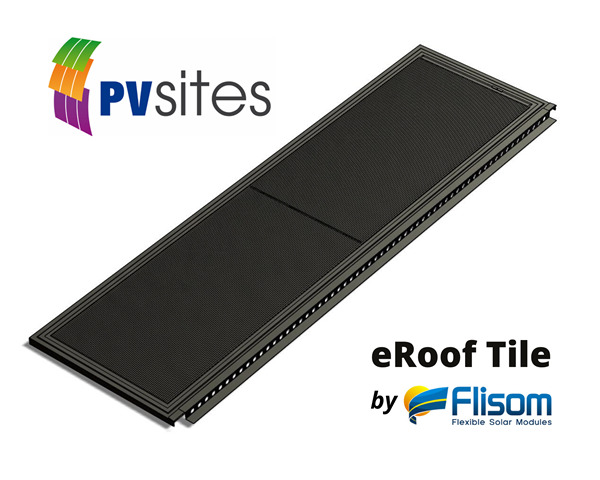

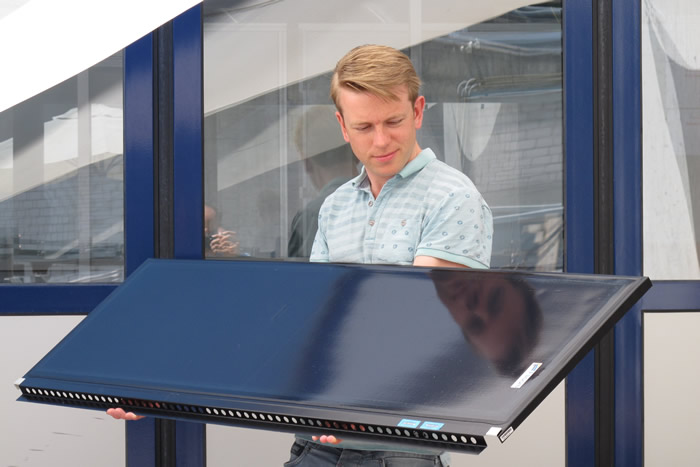

FLISOM – eRoof Tile
Modules can be string connected via supplied standard connectors. The roof structure is made of wood. The modules will be screwed on horizontal bats. Each module has a 25 mm overlap with the next module. Modules are connected in vertical direction with a click-connection. Mounting start with the lowest module and then goes up to the ridge. Add this BIMsolar® object for FREE into your personal database to be BIM-ready! |
Description
PRODUCER DATA
Definition |
The roofing shingle module is a semi-flexible and lightweight solar panel designed for BIPV roof tile installations |
Construction unit |
Roofing shingle |
Architectural location |
Roof |
Geometrical design |
Rectangular |
Dimensions |
1575 x 489 x 21 mm |
Geometrical shape |
Rectangular |
Materials |
Descriptive value |
Configuration |
Monolithic unit |
Layers |
Layers from backsheet to frontsheet in order of application:Mild steel backsheet with PVDF coating, black RAL 9005 / Encapsulant TPO 0.4 mm /PV film CIGS grown on polyimide with Mo and ZnO electrical contacts / Encapsulant TPO 0.4 mm / Barrier film 0.4 mm. the module is sealed with edge seal ~1cm width |
Frame structure |
Frameless |
PV technology |
CIGS (Thin film) |
TPO |
TPO |
Surface treatments |
Surface textured |
Thermal insulation |
none |
Acoustic insulation |
none |
Physical features |
Semi-flexible and lightweight solar panel |
Weight |
6 Kg / unit |
Rigidity |
Semi-flexible |
Opacity |
Opaque |
Mobility |
n.a. |
Active energy features |
Electricity production |
Photovoltaic power |
50-60 Wp/unit |
Additional gain |
n.a. |
Passive energy features |
n.a. |
Optical transmittance |
Opaque |
Thermal transmittance (U value) |
Thermal features |
Specific features
| BIM-ready | Autodesk REVIT specific family (PVSITES) |
|---|---|
| BIMsolar ready | PVSITES database |
| COLOUR | Black (RAL 9005) |
| SIZE | 1575x489x21 mm |
| CELL TECHNOLOGY | CIGS |
| TRANSPARENCY | Opaque |
| BENDING | Flat |
