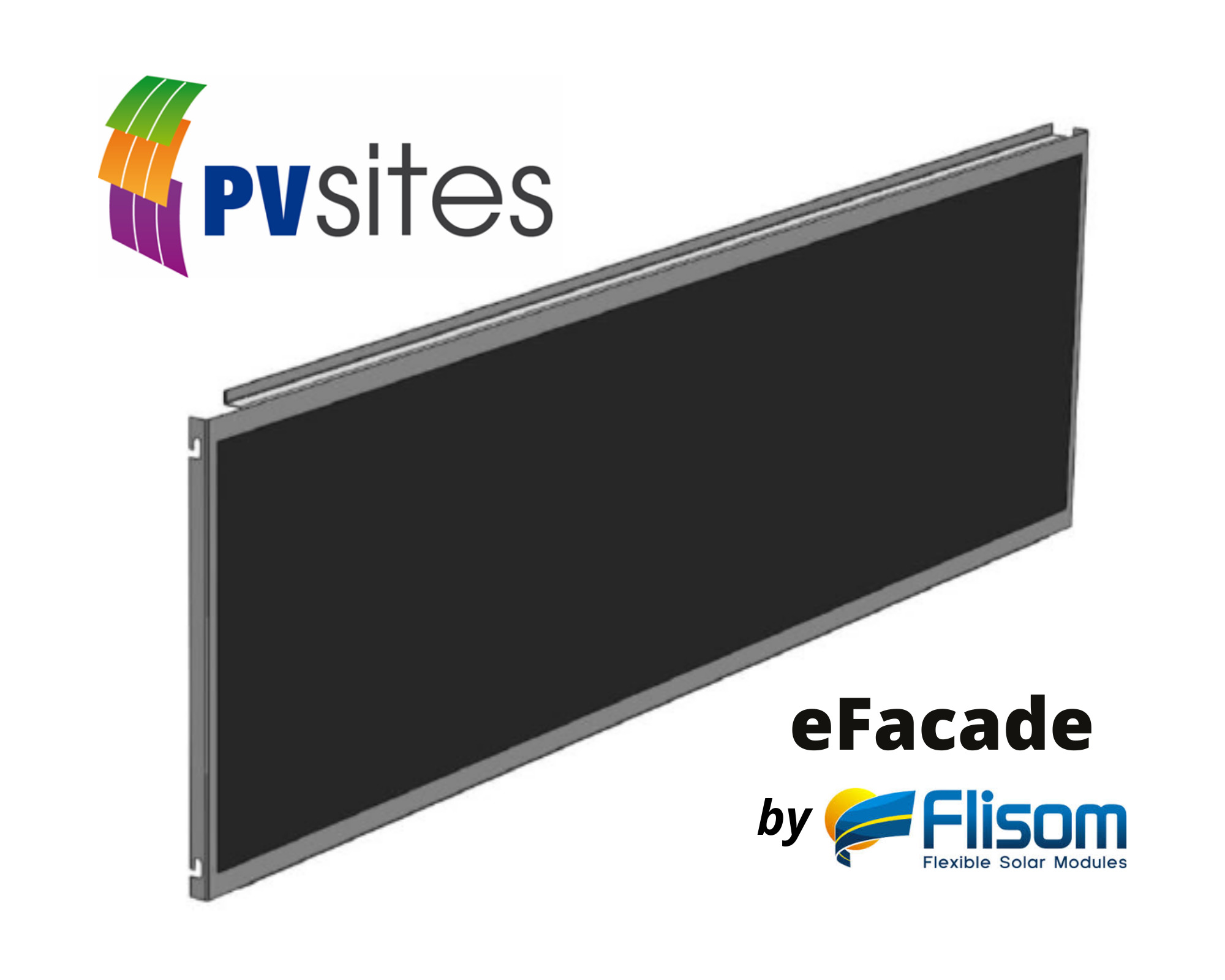

FLISOM – eFacade

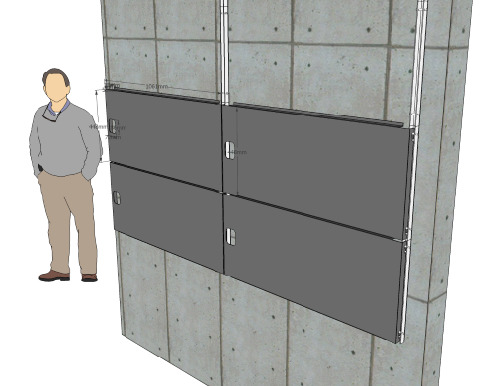

Modules can be string connected via supplied standard connectors. The eFacade elements are hanging on an aluminium back frame system. Additional elements are made to cover edges. Add this BIMsolar® object for FREE into your personal database to be BIM-ready! |

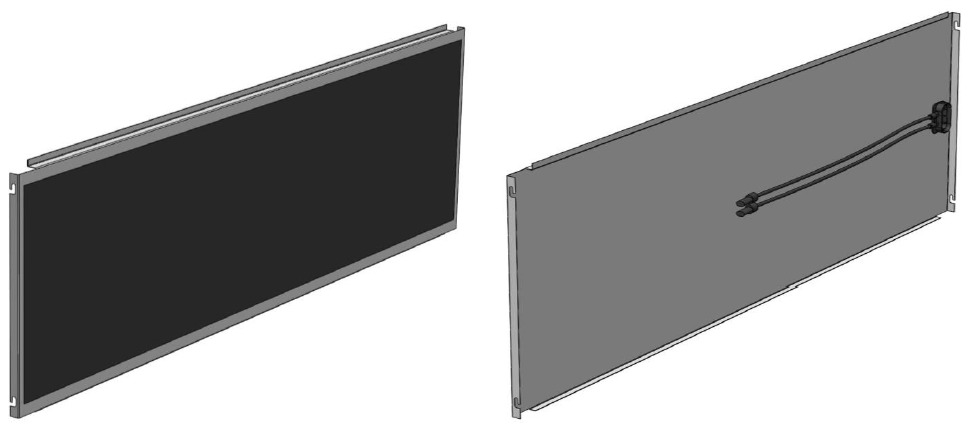

The cladding eFacade module is a semi-flexible and lightweight solar panel designed for BIPV facades. It is designed for longevity in demanding environments and is optimized for residential, office, or public buildings. Each eFacade module includes Flisom’s CIGS monolithically interconnected cell technology.
Description
PRODUCER DATA
Definition |
The cladding module is a semi-flexible and lightweight solar panel designed for BIPV ventilated facades |
Construction unit |
Cladding module |
Architectural location |
Facade |
Geometrical design |
Rectangular |
Dimensions |
1574 x 479 x 20 mm |
Geometrical shape |
Rectangular |
Materials |
Descriptive value |
Configuration |
Monolithic unit |
Layers |
Layers from backsheet to frontsheet in order of application:Aluminum black elox (RAL 9005), encapsulant TPO 0.4 mm; CIGS PV film with electrical contacts, encapsulant TPO 0.4 mm; barrier film 0.4 mm; the module is sealed with edge seal ~1cm width |
Frame structure |
Frameless |
PV technology |
CIGS (Thin film) |
TPO |
TPO |
Surface treatments |
Surface textured |
Thermal insulation |
none |
Acoustic insulation |
none |
Physical features |
Semi-flexible and lightweight solar panel |
Weight |
2.5 Kg / unit |
Rigidity |
Semi-flexible |
Opacity |
Opaque |
Mobility |
n.a. |
Active energy features |
Electricity production |
Photovoltaic power |
50-60 Wp/unit |
Additional gain |
n.a. |
Passive energy features |
n.a. |
Optical transmittance |
Opaque |
Thermal transmittance (U value) |
Thermal features |
Specific features

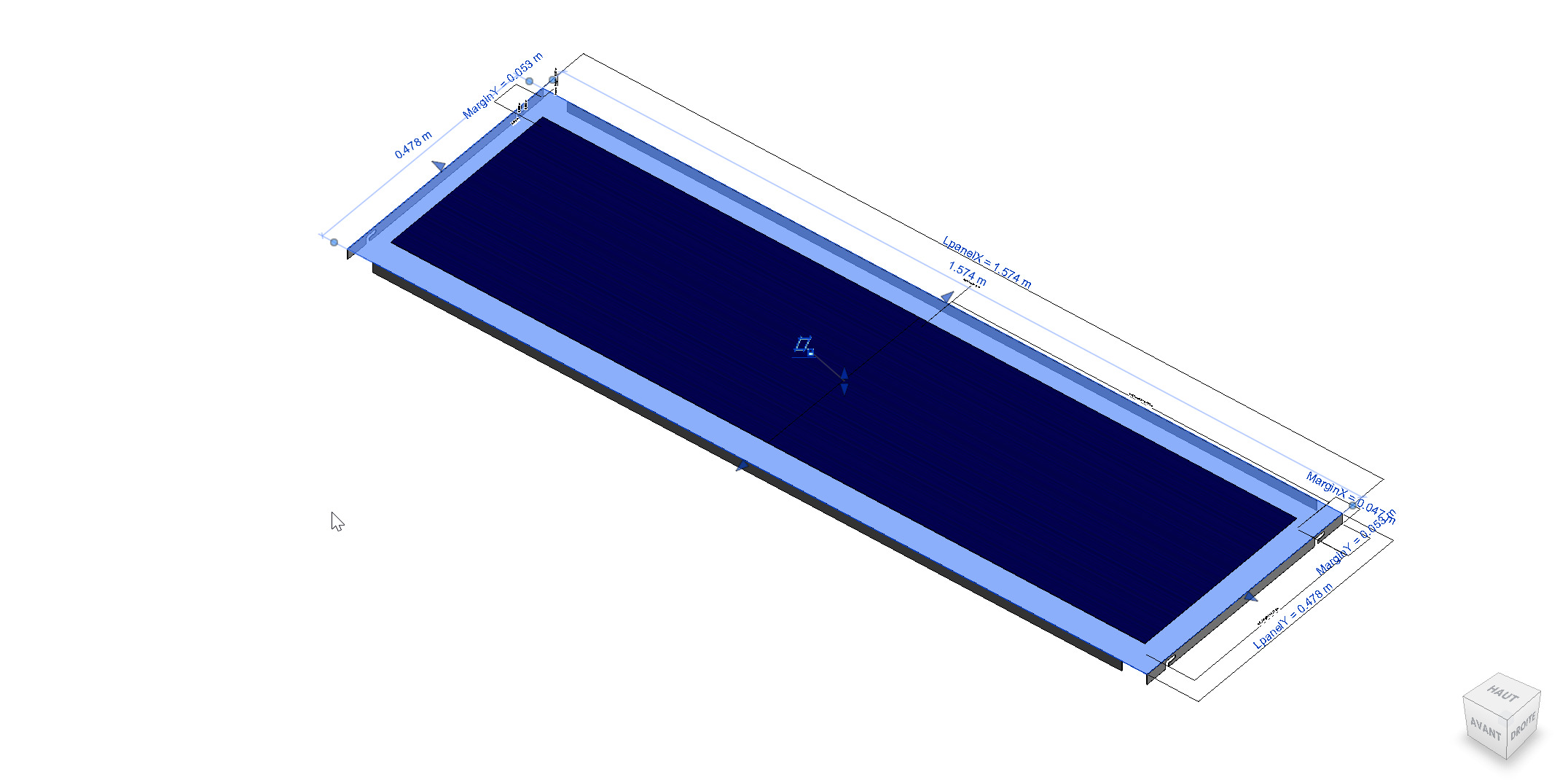

| BIM-ready | Autodesk REVIT specific family (PVSITES) |
|---|---|
| BIMsolar ready | PVSITES database |
| COLOUR | Black (RAL 9005) |
| CELL TECHNOLOGY | CIGS |
| TRANSPARENCY | Opaque |
| BENDING | Flat |
