FLISOM – eRoof Carport

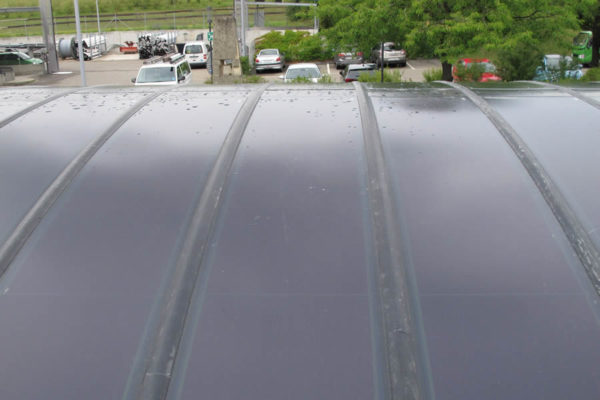

Modules can be string connected via supplied standard connectors. The carport modules are riveted together to one big module of 5.7 m length and will be clamped on profiles with a rubber gasket. Between the modules a 5 mm gap is needed for thermal expansion. Add this BIMsolar® object for FREE into your personal database to be BIM-ready! |

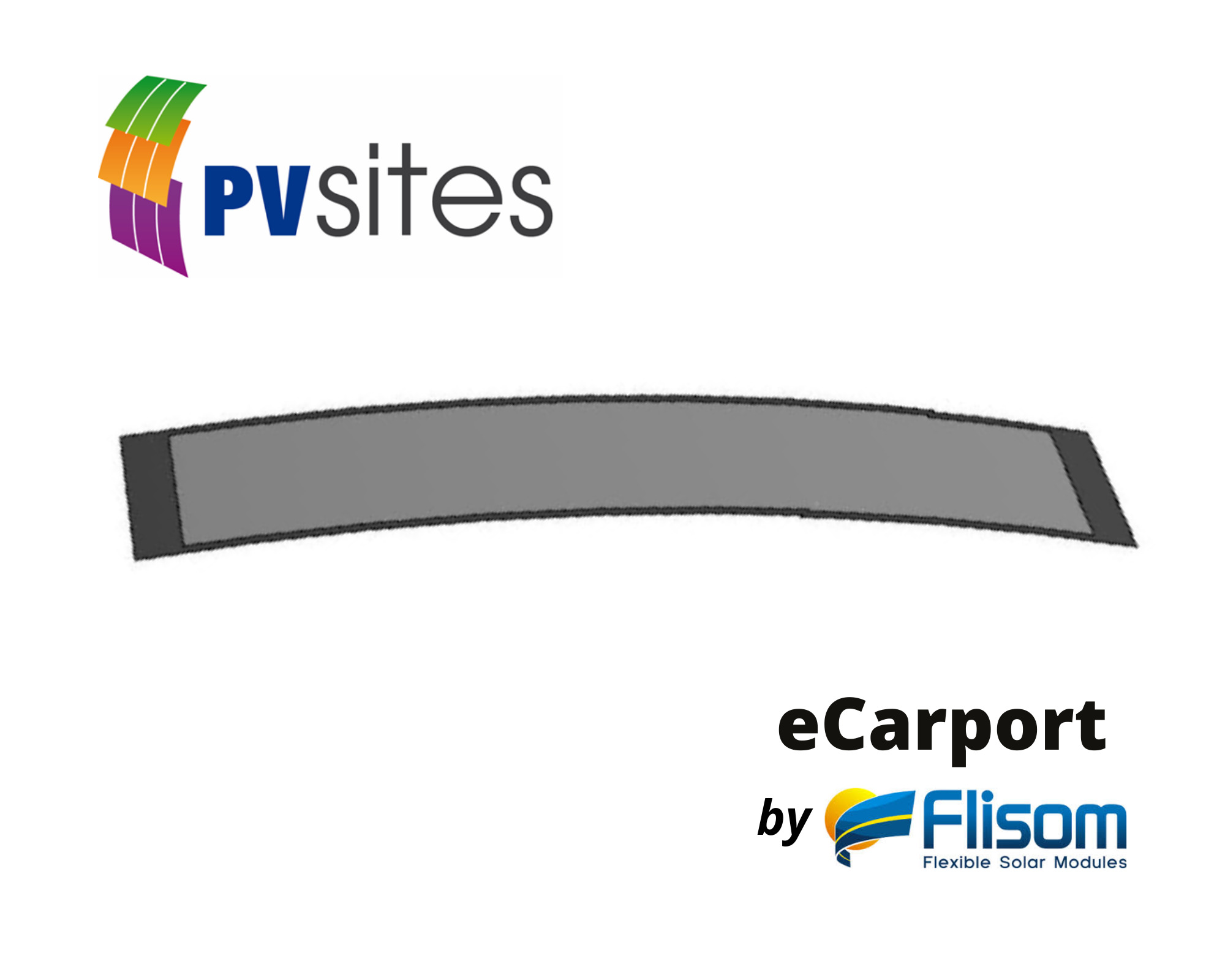

The eCarport module is a semi-flexible and lightweight solar panel designed for BIPV roof and carport installations. It is designed for longevity in demanding environments and is optimized for new roofs and for renovation of existing roofs. Each roof tile includes Flisom’s CIGS monolithically interconnected cell technology.
Description
PRODUCER DATA
Definition |

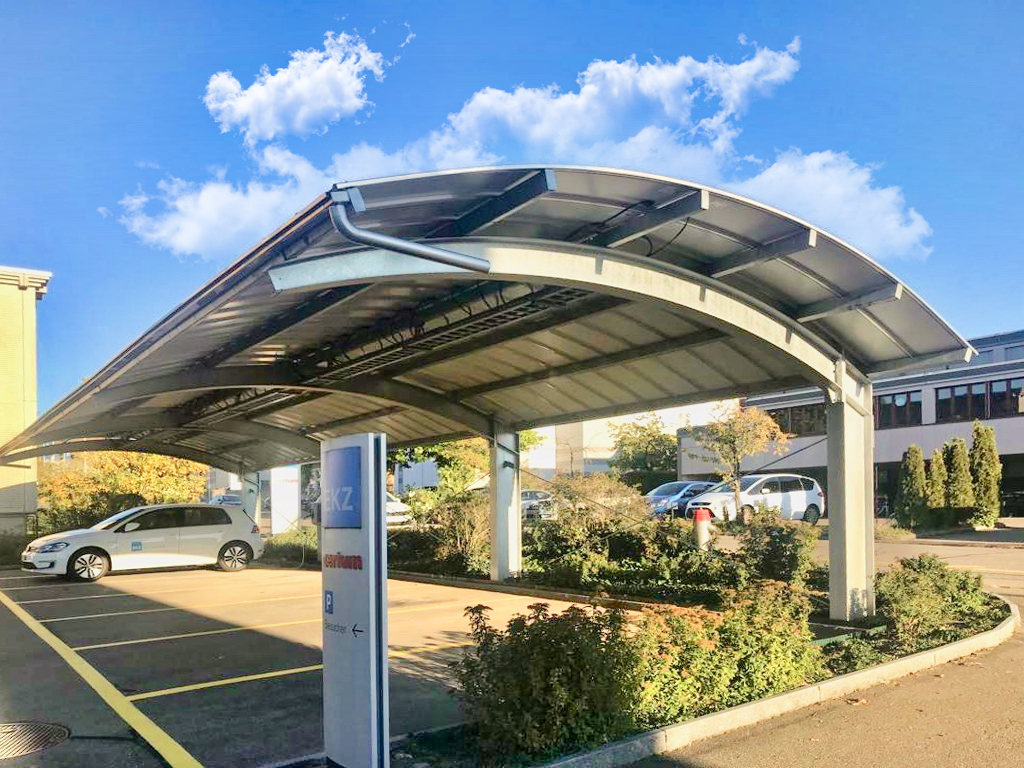

The eCarport module is a semi-flexible and lightweight solar panel dedicated to BIPV carport installations |
Construction unit |
Carport shingle |
Architectural location |
Roof / Carport |
Geometrical design |
Rectangular |
Dimensions |
2519 or 3263 x 458 x 21 mm |
Geometrical shape |
Rectangular |
Materials |
Descriptive value |
Configuration |
Monolithic unit |
Layers |
Layers from backsheet to frontsheet in order of application:Mild steel backsheet with PVDF coating, black RAL 9005; encapsulant TPO 0.4 mm; PV film CIGS grown on polyimide with Mo and ZnO electrical contacts; encapsulant TPO 0.4 mm; barrier film 0.4 mm; the module is sealed with edge seal ~1cm width. |
Frame structure |
Frameless |
PV technology |
CIGS (Thin film) |
TPO |
TPO |
Surface treatments |
Surface textured |
Thermal insulation |
none |
Acoustic insulation |
none |
Physical features |
Semi-flexible and lightweight solar panel |
Weight |
5.9 Kg / unit |
Rigidity |
Semi-flexible |
Opacity |
Opaque |
Mobility |
n.a. |
Active energy features |
Electricity production |
Photovoltaic power |
84 or 110 Wp/unit |
Additional gain |
n.a. |
Passive energy features |
n.a. |
Optical transmittance |
Opaque |
Thermal transmittance (U value) |
Thermal features |
Specific features
| BIM-ready | Autodesk REVIT specific family (PVSITES) |
|---|---|
| BIMsolar ready | PVSITES database |
| COLOUR | Black (RAL 9005) |
| SIZE | 2519 x 458 x 21 mm, 3263 x 458 x 21 mm |
| CELL TECHNOLOGY | CIGS |
| TRANSPARENCY | Opaque |
| BENDING | Curved |
